Creating Tour

Viz4D Tour is created by multiple cameras. It works by transitioning from camera to camera until the end.

Creating camera

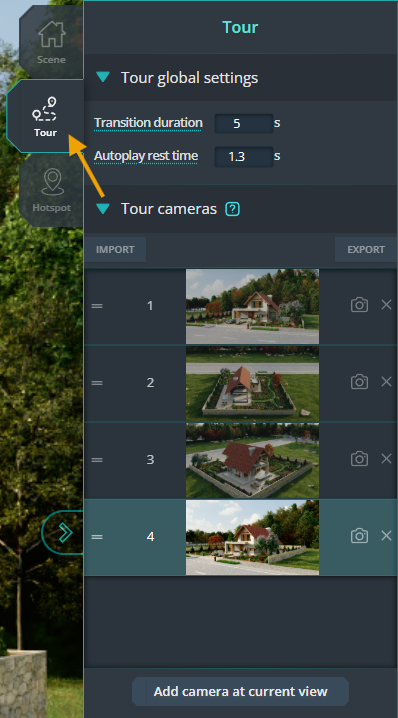

Click the “Add camera at current view” button to create a camera at the current position with the current camera setting.

The camera’s setting includes all properties in “Camera” section:

Note

The first camera of the tour is also the first view when the visualization begins.

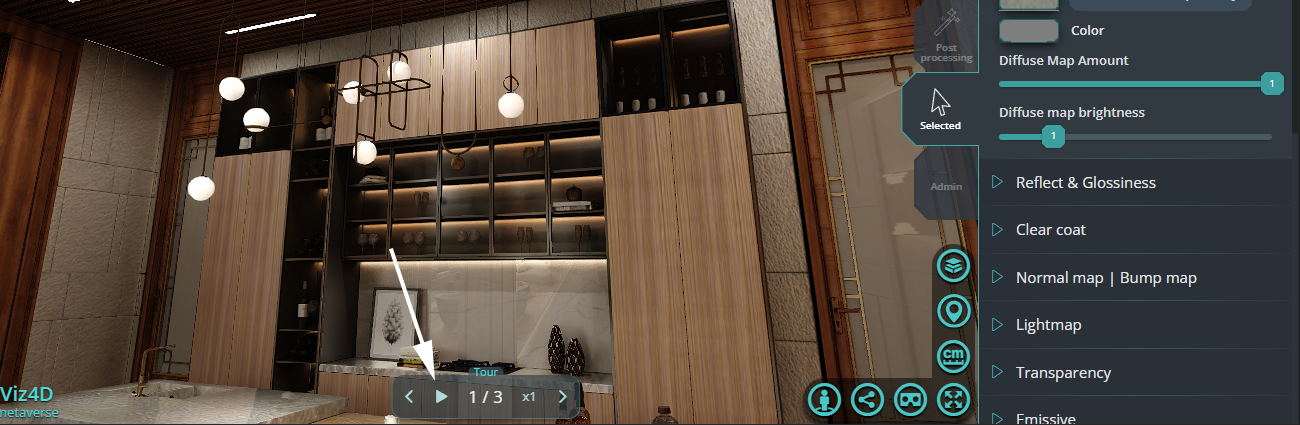

Viewing tour

When you’ve got more than one camera. Click the below button to view how tour will present to the viewer.

Updating camera position and setting

To update the camera’s position and settings, click the camera icon.

Reordering camera of tour

Drag and drop to reorder the camera of tour.

Adjusting travel time and rest time between two cameras

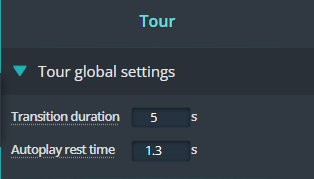

Adjust global setting of time

• Transition duration is the time used to transition between two cameras.
• Autoplay rest time is the break time between two cameras when autoplay is running.

Adjust time of each camera

Choose any camera then you will see the below properties appear.
When you check the checkbox, the new setting will override the global setting of time.
